Connect one end of the HDMI cable (sold separately) to any HDMI IN port on your TV. Connect the other end of the cable to the HDMI OUT port on your audio device. Then, connect an optical audio cable from the TV's Optical digital audio out port to the OPTICAL IN port on your audio device.

Likewise, people ask, how do I hook up my Sony soundbar to my TV?

1. Connect one end of the HDMI cable (sold separately) to the HDMI IN port on your TV.
2. Connect the other end to the TV OUT (ARC) port on your sound bar.
3. Then, connect an optical audio cable from the TV's Optical digital audio out to OPTICAL IN on your sound bar (this is necessary to hear the TV audio).

Beside above, how do I connect my Sony home theater to my TV?

1. Connect an HDMI cable to the HDMI ports labeled ARC, or the port identified in your manual that supports ARC.
2. Set Speakers to Audio system. The steps below are an example on Android TV™.
3. Turn on the Control for HDMI setting on both the TV and the receiver or home theater system.

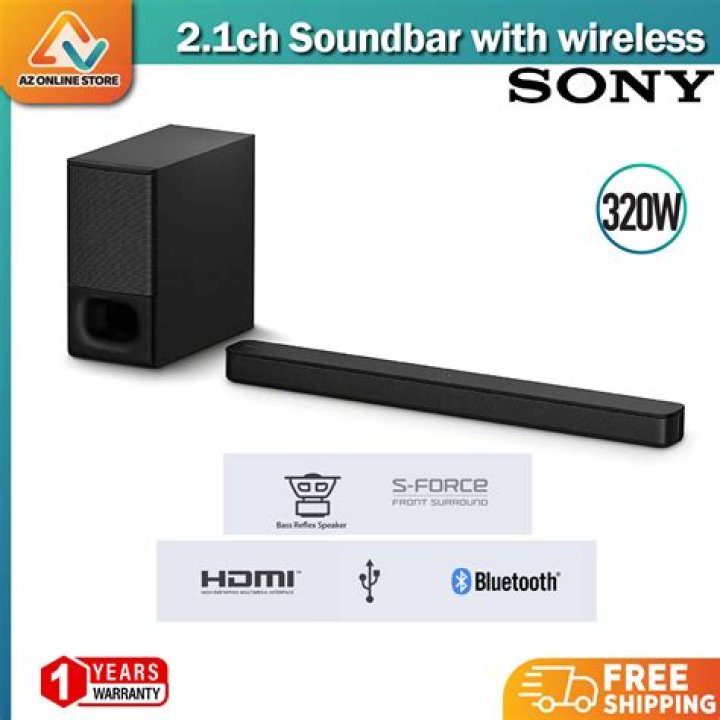

Also to know is, how do I connect my Sony HT s350 to my TV?

Setting up the HT-S350 is brilliantly simple, especially for TVs with HDMI ARC. Simply plug in the bar and subwoofer, connect a high-speed HDMI cable (not supplied) to your TV's HDMI ARC port, and you're likely done.

Why is my soundbar not working with my TV?

Make sure that the ARC feature of your audio device is set to ON or AUTO. Verify that sound is output from the TV after turning on the TV and then the audio device. Make sure that your audio device is set to TV input. Change the TV audio output setting to PCM and check whether sound is output.

Related Question Answers

How do I sync my Soundbar with my TV?

Soundbar is out of sync with the TV

1. Press Sound Control on the soundbar remote, and then use the Left/Right buttons to adjust until sound is synced.
2. Press Audio Sync on the soundbar remote, and then use the Skip Forward/Backward buttons to adjust until the sound is synced.
3. Press + or - under Audio Sync to adjust until the sound is synced.

Why does my soundbar not work with Netflix?

If you're experiencing audio issues with your Netflix on the home theater soundbar, check for any loose connections or bad wiring. If the soundbar works with other apps, you can also check the audio settings and change for a compatible option. Check your TV settings too as some will not audio outputs configured.

How do I connect my Sony soundbar to my TV without cable?

If you want to connect a soundbar to the TV without HDMI or optical, you have two options: go high-tech with a wireless connection or mid-tech with 3.5 mm aux or RCA cables. You can also use an auxiliary device to convert coaxial cables to another type of connection.

Is it better to connect Soundbar with HDMI or Optical?

Both are better than analog (the red and white cables). Both can pass multi-channel audio, like Dolby Digital. The biggest difference is that HDMI can pass higher-resolution audio, including the formats found on Blu-ray: Dolby TrueHD and DTS HD Master Audio. These formats can't get transmitted across optical.

Why is HDMI ARC not working?

Clear cache & reset

Clear cache and clear data on your Android TV device. Perform a power reset on the TV and audio system: Turn off the TV and the audio system. Reconnect the HDMI cable to the HDMI IN (ARC or eARC) input of the TV and the HDMI OUT (ARC or eARC) of the audio system.

Can you use a sound bar with any TV?

Yes, most home theater gadgets these days use HDMI, but that doesn't mean you necessarily need HDMI ports on your sound bar. Instead, you can connect all your home theater devices directly to your TV, then use the TV's audio output to connect to the sound bar.

How do I hook up my receiver to my TV without HDMI?

How do you connect a TV to a receiver without HDMI? You can use any RCA audio cables, a composite video cable, a 5-cable component RCA video cable, or an HDMI converter that matches the input option you have available.

How do I enable arc on my TV?

How to use the Audio Return Channel (ARC) feature

1. On the receiver remote control, press the Menu or Home button. The menu should appear on the TV screen. If not, check your connections.
2. Select Settings.
3. Press Enter.
4. Select HDMI Control or CTR. HDMI.
5. Press Enter.
6. Select ON or CTRL ON.
7. Press Enter.

What does an optical cable look like?

An optical audio cable looks like this. When you insert the cable, it should click into place. It is designed to fit one way only; one side is squared-off while the opposite is angled on the corners. If you look carefully you will see that this matches the shape of the port on your device.

What is ARC HDMI?

HDMI ARC is designed to reduce the number of cables between your TV and an external Home Theatre System or Soundbar. The audio signal is capable of traveling both ways to and from the speakers, which will improve the sound quality and latency of the signal.

How do you connect a soundbar to a TV without HDMI?

Digital optical or digital coaxial

If your soundbar doesn't have an HDMI connector, the next best option is to use a digital optical or digital coaxial cable – capable of transferring digital audio up to 5.1 surround sound.

How can I update my Sony TV?

How to update my Sony TV firmware?

1. From your Sony Home Screen scroll down and select Settings.
2. Select About.
3. Select System Software Update.
4. Select Check for system software update.
5. If there is an update available for your device, please follow the on-screen instructions to download and install it.

How do I connect my soundbar to my TV with HDMI?

To set up HDMI ARC, power on your TV and soundbar. Next, connect one end of an HDMI cable into the HDMI IN (ARC) port on your TV. Connect the other end into the HDMI OUT (TV-ARC) port on your soundbar. Next, change the source on your soundbar to the D.IN.

How do I connect my Samsung soundbar to my Sony TV via Bluetooth?

My soundbar and TV aren't linked through Bluetooth

1. Turn the TV on.
2. On the supplied TV remote, press the HOME button.
3. Select Settings → Bluetooth settings → Add device. The TV will be in pairing mode and a list of available Bluetooth devices will appear after a few minutes.
4. Select the soundbar from the list and perform pairing.

How do I connect my phone to my Sony sound bar?

On your soundbar, press and hold the BLUETOOTH button for two seconds.

Perform pairing registration on the device you want to connect.

1. Check the device manul for more information.
2. If the device requests a passkey, enter 0000.
3. The connection is established if the Bluetooth indicator on your soundbar lights in blue.

Are Dolby Atmos speakers worth it?

Dolby Atmos' being able to create a near real-life listening experience from a movie, video game, or film recording makes it absolutely worth it. This object-based audio system takes surround sound to a whole new level by creating a 'bubble' in which sound comes from all angles.

How do I update my Sony sound bar?

Turn on the Sound Bar. Press the HOME button on the remote control. At the HOME screen, use the arrow keys on the remote control to select Setup > Software Update, and then press the ENTER key. Use the arrow keys on the remote control to select Update via Internet, and then press the ENTER key.

How do I pair my Sony soundbar and subwoofer?

Link the soundbar and subwoofer.

1. On the supplied remote control, press the AMP MENU button.
2. Select WS.
3. Press the Enter button.
4. Select LINK or S.
5. Press the Enter button.
6. After START appears, press the Enter button to allow the soundbar to search for the subwoofer.

How do you turn on a Sony sound bar?

Note: The following is an example of steps on some Android TV™ models: On the supplied remote control, press the Home button. Select Settings.

HT-X9000F/Z9F:

1. Using the Soundbar remote control, press the HOME button.
2. Select Setup.
3. Select Advanced Settings.
4. Select HDMI Settings.
5. Select Control for HDMI and then set to On.

How do I activate Dolby Atmos on Sony sound bar?

Press the HOME button on the remote control, and then select Setup → Advanced Settings → HDMI Settings → eARC → On. In the HDMI Settings, select HDMI Signal Format, and then select Enhanced format.

How do I connect my Sony receiver to my TV?

Option 2: Connection using an HDMI, Coaxial Digital, Optical Digital, or Audio cable

1. Connect a Coaxial Digital Cable, Optical Digital Cable, or Audio cable to the Audio Output jack on your TV.
2. Connect the other end of the cable to the corresponding jacks on the A/V receiver or home theater system.
3. Turn on your TV.

How do I connect my home theater to my Smart TV?

First, you need to establish whether your TV has the HDMI-ARC port. In Samsung TVs, this port is usually labeled ARC on the back of the TV. Now turn off your TV as well as the home theater system. Next, connect the HDMI cable to both the HDMI-ARC/output of your home theater, and the HDMI port of your TV.

Where are the HDMI ports on a Sony Bravia TV?

The ports are easily accessible on the left side and back of the television. Once you connect a Blu-ray or standard DVD player, Internet streaming media device or other HDMI-based device to your Sony BRAVIA KDL via an HDMI port, you must enable the port within the television's setup component.

How do I connect my aux cord to my TV?

If your TV doesn't use RCA connectors for audio output, it may have a headphone out port (3.5mm port). You can use this to connect your TV to the speakers. They're the same connector used on phones, tablets, laptops, etc. For this, you'll need to use a 3.5mm audio jack on the TV end and a RCA jack on the speaker end.

How do I connect speakers to my Smart TV?

Bluetooth

1. Turn on both your TV and the compatible Bluetooth-enabled speaker, soundbar, audio system, or headphones.
2. Go into your TV's audio setup menu, select Bluetooth and start the pairing process.
3. Wait for confirmation that the TV and sound system are paired.

How do you hook up speakers to a TV without a receiver?

All you need to do is connect the AUDIO OUT to the TV's HDMI port. After that, use the amplifier's output connection to connect it to the speaker. If you think about it, the two-channel amplifier literally acts in the same way as a receiver, so there's not a lot of difference in terms of connection.

How do I connect my Bluetooth speaker to my Sony Bravia smart TV?

Make the Bluetooth setting again and check if the issue will improve.

1. Press the Home button on the remote control.
2. Select Settings.
3. The next steps will depend on your TV menu options: Select Remotes & Accessories — Bluetooth settings — Bluetooth. (Android™ 9)
4. Change Bluetooth from on to off.
5. Set Bluetooth to on again.

How do I hook up my RCA surround sound to my HDMI TV?

Connect your TV to the receiver/sub-woofer's video-out port.

1. If you're using HDMI, connect the cable to the HDMI-In on your TV and HDMI-Out on the receiver.
2. If you're using component video, connect the component connects to the Component-In on your TV and Component-Out on your receiver.
