What is meant by fault MVA?
John Thompson

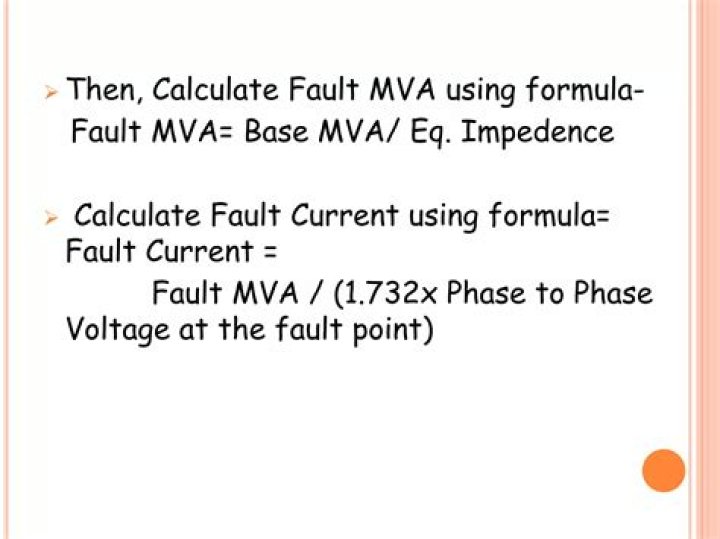

? Calculate the Equivalent reactance for the for the network as seen from the source to the fault point. ? Then, Calculate Fault MVA using formula- Fault MVA= Base MVA/ Eq. Impedence ? Calculate Fault Current using formula= Fault Current = Fault MVA / (1.732x Phase to Phase Voltage at the fault point)
Besides, what is fault MVA?
Calculate the Equivalent reactance for the for the network as seen from the source to the fault point. ? Then, Calculate Fault MVA using formula- Fault MVA= Base MVA/ Eq. Impedence ? Calculate Fault Current using formula= Fault Current = Fault MVA / (1.732x Phase to Phase Voltage at the fault point)
Similarly, what is meant by short circuit MVA? The short circuit MVA is a method to determine the fault currents for points within a power system. The is the line to line voltage and is the three-phase fault short-circuit current.
Similarly, it is asked, how do you calculate fault fault from MVA?
Fault Current = Fault MVA / Base KV
Fault Current = 31 / (1.732×0.415)
How is MVA rating calculated?
MVA (Mega Volt-Amp) rating of the transformer S(MVA) is equal to the product of primary current I(Primary) in amps and Primary Voltage V(primary) in volts divided by 1000000. Example: Calculate the MVA rating of the transformer whose primary voltage of 110000 V and secondary current of 100 Amps.
Related Question Answers
Why is fault level important?
Fault level is an important criterion in designing the basic parameters of an electrical setup. Fault Level at any given point of the electric power system is the maximum current that would flow in case of short circuit condition.What is meant by fault calculation?
Fault calculations are one of the most common types of calculation carried out during the design and analysis of electrical systems. These calculations involve determining the current flowing through circuit elements during abnormal conditions – short circuits and earth faults.How is fault current calculated?
A fault current is an unintended, uncontrolled, high current flow through an electrical system. Fault currents are caused by very low impedance short circuits. Fault current calculations are based on Ohm's Law in which the current (I) equals the voltage (V) divided by the resistance (R). The formula is I = V/R.How does fault current work?
The fault current is the electrical current which flows through a circuit during an electrical fault condition. A fault condition occurs when one or more electrical conductors short to each other or to ground. Fault interruption devices include fuses, circuit breakers and relays.Which portion of the power system is least prone to fault?
Alternators.What are the effects of short circuit?
Effects of Short-CircuitWhen a short-circuit occurs, the current in the system increases to an abnormally high value while the system voltage decreases to a low value. The heavy current due to short-circuit causes excessive heating which may result in fire or explosion.
How do you convert kA to MVA?
For a three phase fault, divide total calculated SC MVA value by 1.73 * kVLL to get short circuit current values in kA.How do you calculate short circuit MVA?
The short circuit MVA of each is equal to its MVA rating divided by its own per unit impedance or reactance. For a feeder where voltage is given and its impedance or re- actance is known, its short circuit MVA is equal to (KV)2 divided by its impedance or reactance in ohms.Which one of the following is symmetrical fault?
A three-phase fault is a symmetrical fault. The other three fault types (line to ground, line to line, and two- line to ground) are called unsymmetrical or asymmetrical faults. Because symmetrical faults result in balanced conditions, they may be analyzed using per-phase analysis.How is busbar fault current calculated?
Rated Voltage = 415V,50Hz , Desire Maximum Current Rating of Bus bar =630Amp. Fault Current (Isc)= 50KA ,Fault Duration (t) =1sec.(1) De rating Factors for Bus bar:
| Altitude of installation site (Meter) (K8) | De rating Factor |
|---|---|
| 2400 | 0.87 |
| 2500 | 0.86 |
| 2700 | 0.85 |
| 2900 | 0.84 |
What is base KVA?
Voltage in equations (KV) is the secondary transformer voltage, line to line. Base KVA is 10,000 in all examples. Only those components actually in the system have to be included, each component must have an X and an R value. Neutral size is assumed to be the same size as the phase conductors.Which fault gives rise to symmetrical fault current?
A symmetrical fault gives rise to symmetrical fault currents that are displaced with 1200 each other. Symmetrical fault is also called as balanced fault. This fault occurs when all the three phases are simultaneously short circuited. These faults rarely occur in practice as compared with unsymmetrical faults.What is the importance of base kVA in short circuit calculations?
The product of normal voltage and short circuit current at the point of fault is expressed in Short Circuit kVA even though the voltage at the point of fault reduces to very low value (ideally zero). Thus three phase short circuit kVA is obtained by dividing the Base kVA by percentage impedance.How is electrical MVA calculated?
Divide the number of kVA by 1,000 to convert to MVA. For example, if you have 438 kVA, divide 438 by 1,000 to get 0.438 MVA. Multiply the number of kVA by 0.001 to convert to MVA. In this example, multiply 438 by 0.001 to get 0.438 MVA.Why short circuit current is high?
With a low resistance in the connection, a high current will flow, causing the delivery of a large amount of energy in a short period of time. Such short circuits are likely to result in a very high current and therefore quickly trigger an overcurrent protection device.What is a short circuit calculation?
A short-circuit study is an analysis of an electrical system that determines the magnitude of the currents that flow during an electrical fault. Comparing these calculated values against the equipment ratings is the first step to ensuring that the power system is safely protected.What is short circuit level?
Short Circuit Level is the amount of current that flows on the system during a fault. During the fault, the system can see a direct connection to the earth and current flows from all sources into it.How do you find the short circuit current of a cable?
1 - Calculation of Lmax for a 3-phase 3-wire circuit- Zd = impedance of the fault loop.
- Isc = short-circuit current (ph/ph)
- U = phase-to-phase nominal voltage.
What is short circuit capacity of a bus?
Short circuit capacity(SSC). ? The short circuit capacity at a bus is defined as the product of the magnitudes of the prefault bus voltages and post fault current. Short Circuit MVA(3φ)= ?? ????????????????* ?? ????*?????? ?? ? SSC used to determine the dimensions of the bus bar and interrupting capacity of the circuit breaker.What does available fault current mean?
Available Fault Current is the maximum amount of current that can be delivered to the electrical equipment under a fault condition or the largest amount of current available during a fault.Is MVA same as MW?
MVA is the apparant power, MW is the real power and, MVAR is reactive power. MW describes the actual power that can be supplied to the load and MVA includes both the power supplied to the load AND the power that recirculates between the power plant and the load (volts*amps).What is per unit value?
Definition: The per-unit value of any quantity is defined as the ratio of actual value in any unit to the base or reference value in the same unit. Any quantity is converted into per unit quantity by dividing the numeral value by the chosen base value of the same dimension. The per-unit value is dimensionless.Why transformers are used in MVA?
Iron losses and copper losses are common for all electrical machines (be it motor/ alternator or transformer). The real reason is that all AC sources (transformer or alternators) are rated in VA (or KVA or MVA) is because the power factor of current is decided by the load connected.What is MVA capacity?
Megavolt amperes (MVA) power is a unit used for measuring apparent power. The apparent power refers to the total current and voltage in an electrical circuit. Matching MVA power capacity in transformers with the substation reduces power loss.What is 11kV line?
The 11kV lines are used in residential areas and is what feeds the local transformers, which then distributes power to the buildings in the area. 33kV lines on the other hand involve much higher voltages and are used to distribute power from one small sub-station to another.How many volts is a 3 phase line?
The voltage betwee two line is called line voltage . 3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts.How do you solve per unit problems?
- Per Unit PE Exam Practice Problem.
- Step 1: Separate by Voltage Zones.
- Step 2: Assign Base Values.
- Step 3: Calculate Base Impedance for Each Zone.
- Step 4: Calculate the Per Unit Impedance for Each Zone.
- Step 5: Calculate the Per Unit Impedance for Transformer T1.
- Step 6: Calculate the Per Unit Impedance for Transformer T2.
